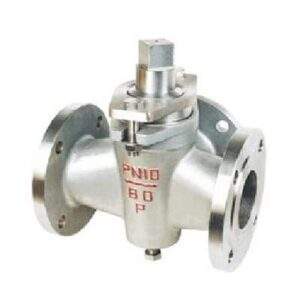

Two Way Plug Valve
Factory direct price, MOQ starting from 1 piece, free sample available.
One-stop valve service provider.
Over 20 years of experience.
Product Categories
Send Your Inquiry Today
Main performance specifications
| model | nominal pressure PN(MPa) | testing pressurePS(MPa) | Applicable Medium | operation temperature (℃) |
|||||||||||
| housing | seal | ||||||||||||||
| X43W-1.0T | 1.0 | 1.5 | 1. | Water,steam,oil products | ≤100 | ||||||||||
| X43T-1.0 | 1.0 | 1.5 | 1. | Water,steam,oil products | ≤100 | ||||||||||
| X43W-1.0 | 1.0 | 1.5 | 1. | Gas and,oil products | ≤100 | ||||||||||
| X43W-1.0C | 1.0 | 1.5 | 1. | Gas and,oil products | ≤200 | ||||||||||
| X43T-1.0P | 1.0 | 1.5 | 1. | Nitric Acid | ≤250 | ||||||||||
| X43W-1.0R | 1.0 | 1.5 | 1. | Acetic acid | -20~150 | ||||||||||
Main parts materials
| Part name | valve body | plug | Packing gland | filler | ||||||||||||||||
| X43W-1.0T | cast copper | cast copper | cast copper |
Flexible graphite Oil invades asbestos packing |
||||||||||||||||
| X43T-1.0 | cast iron | cast copper | cast iron | |||||||||||||||||
| X43W-1.0 | cast iron | cast iron | cast iron | |||||||||||||||||
| X43W-1.0C | cast steel | cast steel | malleable iron | |||||||||||||||||
| X43T-1.0P | Chromium nickel titanium stainless steel | Chromium nickel titanium stainless steel | Chromium nickel titanium stainless steel | |||||||||||||||||
| X43W-1.0R | Chromium nickel molybdenum titanium stainless steel | Chromium nickel molybdenum titanium stainless steel | Chromium nickel molybdenum titanium stainless steel | |||||||||||||||||
Main shape and connection dimensions
| model | X43W-1.0T、X43T-1.0、X43W-1.0、X43W-1.0C、X43W-1.0P、X43W-1.0R | ||||||||||||||
| DN(mm) | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |
| size (mm) |
L | 80 | 90 | 110 | 115 | 150 | 170 | 220 | 250 | 300 | 350 | 400 | 480 | 530 | 610 |
| D | 95 | 105 | 115 | 135 | 145 | 160 | 180 | 195 | 215 | 245 | 280 | 335 | 390 | 440 | |
| D1 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 350 | 400 | |
| D2 | 45 | 55 | 65 | 78 | 85 | 100 | 120 | 135 | 155 | 185 | 210 | 265 | 320 | 368 | |
| f | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | |
| b | 14 | 16 | 16 | 18 | 18 | 20 | 20 | 22 | 26 | 24 | 24 | 24 | 28 | 30 | |
| Z-φd | 4-φ14 | 4-φ14 | 4-φ14 | 4-φ18 | 4-φ18 | 4-φ18 | 4-φ18 | 4-φ18 | 8-φ18 | 8-φ18 | 8-φ23 | 8-φ23 | 12-φ23 | 12-φ23 | |
| h | 26 | 34 | 38 | 45 | 55 | 74 | 82 | 95 | 135 | 154 | 172 | 195 | 230 | 263 | |
| H | 99 | 124 | 133 | 152 | 212 | 260 | 295 | 327 | 425 | 482 | 512 | 605 | 660 | 760 | |
