Tee Pipe
Factory direct price, MOQ starting from 1 piece, free sample available.
One-stop valve service provider.
Over 20 years of experience.
Product Categories
Send Your Inquiry Today
Three Way Parameters
| Nominal diameter | outside diameter | Center to End | ||||
| D | C | M | ||||
| DN | Inch | A series | B series | |||
| 15 | 1/2 | 21.3 | 18 | 25 | ||
| 20 | 1 3/4 | 26.9 | 25 | 29 | ||
| 25 | 1 | 33.7 | 32 | 38 | ||
| 32 | 1 1/4 | 42.4 | 38 | 48 | ||
| 40 | 1 1/2 | 48.3 | 45 | 57 | ||
| 50 | 2 | 60.3 | 57 | 64 | ||
| 65 | 2 1/2 | 76.1(73) | 76 | 76 | ||
| 80 | 3 | 88.9 | 89 | 86 | ||
| 90 | 3 1/2 | 101.6 | — | 95 | ||
| 100 | 4 | 114.3 | 108 | 105 | ||
| 125 | 5 | 139.7 | 133 | 124 | ||
| 150 | 6 | 168.3 | 159 | 143 | ||
| 200 | 8 | 219.1 | 219 | 178 | ||
| 250 | 10 | 273.0 | 273 | 216 | ||
| 300 | 12 | 323.9 | 325 | 254 | ||
| 350 | 14 | 355.6 | 377 | 279 | ||
| 400 | 16 | 406.4 | 426 | 305 | ||
Four Way Parameters
| Nominal diameter | outside diameter | Center to End | ||||
| D | C | M | ||||
| DN | Inch | A series | B series | |||
| 450 | 18 | 457.2 | 478 | 343 | ||
| 600 | 20 | 508 | 529 | 381 | ||
| 550 | 22 | 559 | — | 419 | ||
| 600 | 24 | 610 | 630 | 432 | ||
| 650 | 26 | 660 | — | 495 | ||
| 700 | 28 | 711 | 720 | 521 | ||
| 750 | 30 | 762 | — | 559 | ||
| 800 | 32 | 813 | 820 | 597 | ||
| 850 | 34 | 864 | — | 635 | ||
| 900 | 36 | 914 | 920 | 673 | ||
| 950 | 38 | 965 | — | 711 | ||
| 1000 | 40 | 1016 | 1020 | 749 | ||
| 1050 | 42 | 1067 | — | 762 | 711 | |
| 1100 | 44 | 1118 | 1120 | 813 | 762 | |
| 1150 | 46 | 1168 | — | 851 | 800 | |
| 1200 | 48 | 1220 | 1220 | 889 | 838 | |
Related Products
-
×

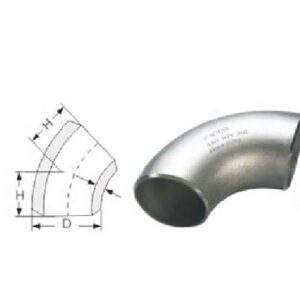

Elbow Pipe
Extra Features- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
Open full product page00In stock -
×

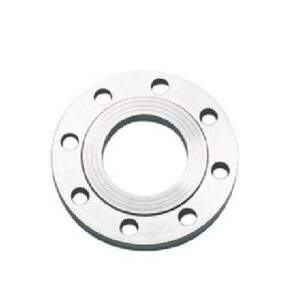

PN0.6 MPa Flange
Extra Features- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
Open full product page00In stock -
×

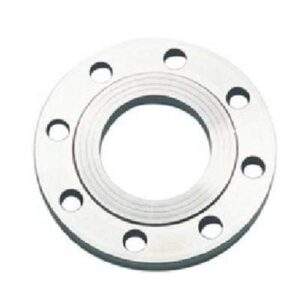

Flange PN 0.6MPa
