Resilient Gate Valve
Resilient Gate Valve

Resilient Gate Valve

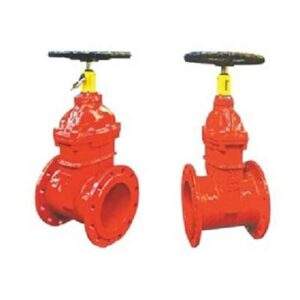

Product Description In addition to the advantages of elastic seated gate valves, rising stem elastic seated gate valves can more intuitively indicate the valve opening, so they are often used in fire protection and industrial systems. They are generally installed at a higher position from the ground.
In stock
No MOQ, Free Samples
Custom-made, OEM/ODM Available.
Committed to a 2-hour Quote Response
One-stop Valve Service Provider

Technical Parameters

Nominal diameter DN(mm) Nominal pressure PN(MPa) working temperature Sealing pressure Valve body pressure resistance Applicable media
DN50-400mm 1.0/1.6/2.5MPa 0-80℃ 1.1 times nominal pressure 1.5 times nominal pressure Water, oil, and gas

Main dimensions

Product model Nominal diameter DN(mm) D1 D2 n-φd Hmin Hm ha
1.0MPa 1.0MPa 1.6MPa 1.0MPa 1.6MPa
GVS(F)-0050 50 135 125 4/19 178 322 374
GVS(F)-0065 65 185 145 4/19 190 332 398
GVS(F)-0080 80 200 160 8/19 208 350 429
GVS(F)-00100 100 220 180 8/19 229 420 524
GVS(F)-00125 125 250 210 8/19 254 581 721
GVS(F)-00150 150 285 240 8/23 267 581 736
GVS(F)-00200 200 340 295 8/23 12/23 2912 736 942
GVS(F)-00250 250 405 350 355 12/23 12/28 330 882 1013
GVS(F)-00300 300 460 400 410 12/23 12/28 356 1009 1117
GVS(F)-00350 350 520 460 470 16-23 16-28 381 1300 1655
GVS(F)-00400 400 580 515 525 16-28 16-31 406 1380 1805
Related Products
  • Fire Gate Valve
    ×
    Fire Gate Valve
    Fire Gate Valve

    Fire Gate Valve

    Product Overview

    Signal gate valves and signal butterfly valves are often used in automatic sprinkler fire protection pipeline systems to monitor the water supply pipeline and can remotely indicate the valve opening.
    Rising stem gate valves and gate valves with opening indication are also often used in fire protection systems. If the gate valve is installed at a higher position from the ground, a rising stem gate valve is generally used, which can clearly indicate the gate opening. If the installation position is lower, a gate valve with opening indication is required.
