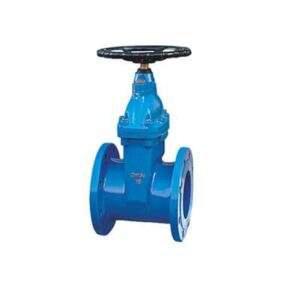

Resilient Gate Valve

Factory direct price, MOQ starting from 1 piece, free sample available.
One-stop valve service provider.

Over 20 years of experience.

Product Categories

Send Your Inquiry Today

Resilient Gate Valve
Resilient Gate Valve

Resilient Gate Valve

In stock
No MOQ, Free Samples
Custom-made, OEM/ODM Available.
Committed to a 2-hour Quote Response
One-stop Valve Service Provider

Dimensions

Product Code Nominal diameter D D1 h-φd
1.0MPa 1.6MPa 1.0MPa 1.6MPa 1.0MPa 1.6MPa
RVC(H)X-0050 50 165 25 4-19 178 340
RVC(H)X-0065 65 185 145 4-19 190 370
RVC(HX-0080 80 200 160 8-19 203 410
RVC(H)X-0100 100 220 180 8-19 229 450
RVC(H)X-0125 125 250 210 8-19 254 480
RVC(H)X-0150 150 285 240 8-23 267 550
RVC(H)X-0200 200 340 295 8/23 12/23 292 630
RVC(H)X-0250 250 405 350 355 12/23 12/28 330 750
RVC(H)X-0300 300 460 400 410 12-23 12/28 356 320
RVC(H)X-0350 350 520 460 470 16-23 16-28 381 980
RVC(H)X-0400 400 580 515 525 16-28 16-31 406 1010
RVC(H)X-0450 450 640 565 585 20-28 20-31 432 1270
RVC(HX-0500 500 715 620 650 20-28 20-34 457 1270
RVC(H)X-0600 600 840 725 770 20-31 30-37 508 1390

Note:
RVVX indicates non-rising stem gate valve
RVXP indicates labor-saving device
RRXX indicates rising stem gate valve
RRHX indicates rising stem gate valve with hand wheel

Related Products
  • Seal Gate Valve
    ×
    Seal Gate Valve
    Seal Gate Valve

    Seal Gate Valve

    Application

    Our factory introduces European high-tech valve manufacturing technology to produce elastic seat seal gate valves, which use the overall rubber coating of the gate to produce deformation compensation to achieve a good sealing effect, overcoming the problems of poor sealing, water leakage and rust of general gate valves. It can be widely used as a regulating and intercepting device in fluid pipelines such as tap water, sewage, construction, petroleum, chemical industry, food, medicine, textile, electricity, shipbuilding, metallurgy, energy system, etc.

    Features

    • Overall rubber coating: The gate adopts overall rubber coating, which has good covering performance and precise geometric dimensions, ensuring reliable sealing and long service life.
    • Light weight: The valve body is made of ductile iron, which is light and easy to install.
    • Flat bottom valve seat: The bottom adopts the same flat bottom valve seat design as the water pipe, which does not produce debris accumulation and has a more reliable seal.
    • Corrosion resistance: The inner cavity is coated with non-toxic epoxy resin to prevent corrosion and rust. It can not only be used for drinking, but also for sewage systems.
    • Three “O” seals: The valve stem adopts three O-ring seals, which has low friction resistance, light switches, and no water leakage.
