Lift Check Valve
Factory direct price, MOQ starting from 1 piece, free sample available.
One-stop valve service provider.
Over 20 years of experience.
Product Categories
Send Your Inquiry Today
Main appearance and connection dimensions
| inch | mm | Main external dimensions and connection dimensions(mm) | ||
| L | d | H | ||
| H64Y-1500Lb | ||||
| 2 1/2″ | 65 | 254 | 56 | 250 |
| 3″ | 80 | 305 | 64 | 300 |
| 4″ | 100 | 406 | 84 | 350 |
| 5″ | 125 | 483 | 100 | 425 |
| 6″ | 150 | 559 | 126 | 400 |
| 8″ | 200 | 711 | 158 | 490 |
| 10″ | 250 | 864 | 200 | 540 |
| 12″ | 300 | 991 | 250 | 650 |
| 14″ | 350 | 1067 | 280 | 710 |
Main appearance and connection dimensions2
| inch | mm | Main external dimensions and connection dimensions(mm) | ||
| L | d | H | ||
| H64Y-2000Lb | ||||
| 2 1/2″ | 65 | 330 | 50 | 240 |
| 3″ | 80 | 368 | 60 | 305 |
| 4″ | 100 | 457 | 80 | 315 |
| 5″ | 125 | 533 | 88 | 380 |
| 6″ | 150 | 610 | 118 | 425 |
| 8″ | 200 | 762 | 148 | 480 |
| 10″ | 250 | 914 | 180 | 570 |
| 12″ | 300 | 1041 | 222 | 570 |
| 14″ | 350 | 1118 | 254 | 680 |
Main shape and connection dimensions3
| inch | mm | Main external dimensions and connection dimensions(mm) | ||
| L | d | H | ||
| H64Y-2500Lb | ||||
| 3″ | 80 | 368 | 56 | 270 |
| 4″ | 100 | 457 | 75 | 385 |
| 5″ | 125 | 533 | 86 | 410 |
| 6″ | 150 | 610 | 104 | 455 |
| 8″ | 200 | 762 | 136 | 555 |
| 10″ | 250 | 914 | 162 | 615 |
| 12″ | 300 | 1041 | 210 | 715 |
| 14″ | 350 | 1118 | 234 | 790 |
Related Products
-
×

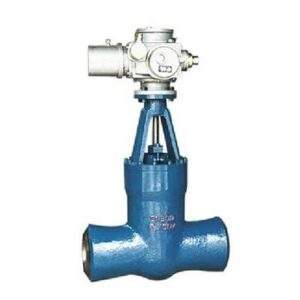

Power Station Stop Valve
Extra Features- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
Open full product page00In stock -
×

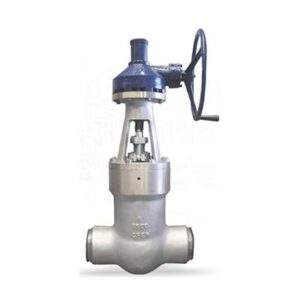

Power Station Valve
