PN0.6 MPa Flange
Factory direct price, MOQ starting from 1 piece, free sample available.
One-stop valve service provider.
Over 20 years of experience.
Product Categories
Send Your Inquiry Today
Parameters
| Nominal diameter DN |
Outer diameter of steel pipe butt welding ring neck A1 |
Connection size | Flange thickness | Inner diameter of flange | fillet | To the corner | 对焊环 | Theoretical weight (kg) |
||||||||||
| Outer diameter of flange | Diameter of the center circle of the screw hole | Diameter of the center circle of the screw hole | Number of bolt holes | thread | height | external diameter | S | S2 | ||||||||||
| A | B | A | B | Welding ring | flange | |||||||||||||
| 10 | 17.2 | 14 | 90 | 60 | 14 | 4 | M12 | 14 | 21 | 18 | 2 | 2 | 35 | 41 | 1.8 | 1.8 | 0.04 | 0.60 |
| 15 | 21.3 | 18 | 95 | 65 | 14 | 4 | M12 | 14 | 25 | 22 | 2 | 2 | 38 | 46 | 2.0 | 2.0 | 0.05 | 0.67 |
| 20 | 26.9 | 25 | 105 | 75 | 14 | 4 | M12 | 16 | 31 | 29 | 2 | 2 | 40 | 56 | 2.3 | 2.3 | 0.09 | 0.93 |
| 25 | 33.7 | 32 | 115 | 86 | 14 | 4 | M12 | 16 | 38 | 36 | 3 | 3 | 40 | 65 | 2.6 | 2.6 | 0.13 | 1.10 |
| 32 | 42.4 | 38 | 140 | 100 | 18 | 4 | M16 | 18 | 47 | 42 | 3 | 3 | 42 | 76 | 2.6 | 2.6 | 0.17 | 1.83 |
| 40 | 48.3 | 45 | 150 | 110 | 18 | 4 | M16 | 18 | 53 | 50 | 3 | 3 | 45 | 84 | 2.6 | 2.6 | 0.20 | 2.07 |
| 50 | 60.3 | 57 | 165 | 125 | 18 | 4 | M16 | 20 | 65 | 62 | 3 | 3 | 48 | 99 | 2.9 | 2.9 | 0.31 | 2.72 |
| 66 | 76.1 | 76 | 186 | 145 | 18 | 4 | M16 | 20 | 81 | 81 | 3 | 3 | 48 | 118 | 2.9 | 2.9 | 0.4 | 3.25 |
| 80 | 88.9 | 89 | 200 | 160 | 18 | 8 | M16 | 20 | 94 | 94 | 4 | 4 | 50 | 132 | 3.2 | 3.2 | 0.54 | 3.52 |
| 100 | 114.3 | 108 | 220 | 180 | 18 | 8 | M16 | 22 | 120 | 114 | 4 | 4 | 52 | 156 | 3.6 | 3.6 | 0.79 | 4.45 |
| 125 | 139.7 | 133 | 250 | 210 | 18 | 8 | M16 | 22 | 145 | 139 | 4 | 4 | 55 | 184 | 4.0 | 4.0 | 1.16 | 5.50 |
| 150 | 168.3 | 159 | 285 | 240 | 22 | 8 | M20 | 24 | 174 | 165 | 4 | 4 | 55 | 211 | 4.5 | 4.5 | 1.56 | 7.41 |
| 200 | 219.1 | 219 | 340 | 295 | 22 | 8 | M20 | 24 | 226 | 226 | 5 | 5 | 62 | 266 | 5.9 | 5.9 | 2.84 | 8.97 |
| 250 | 273 | 273 | 395 | 350 | 22 | 12 | M20 | 26 | 281 | 281 | 5 | 6 | 68 | 319 | 6.3 | 6.3 | 3.96 | 11.4 |
| 300 | 323.9 | 325 | 445 | 400 | 22 | 12 | M20 | 28 | 333 | 334 | 5 | 5 | 68 | 370 | 7.1 | 7.1 | 5.26 | 14 |
| 350 | 355.6 | 377 | 505 | 460 | 22 | 16 | M20 | 30 | 365 | 386 | 5 | 5 | 68 | 429 | 7.1 | 7.1 | 7.34 | 18.2 |
| 400 | 406.4 | 426 | 565 | 515 | 26 | 16 | M24 | 32 | 416 | 435 | 5 | 5 | 72 | 480 | 7.1 | 7.1 | 8.74 | 23.5 |
| 450 | 457 | 480 | 615 | 566 | 26 | 20 | M24 | 35 | 467 | 490 | 5 | 5 | 72 | 530 | 7.1 | 7.1 | 10.1 | 26.9 |
| 500 | 508 | 530 | 670 | 620 | 26 | 20 | M24 | 38 | 519 | 541 | 6 | 6 | 75 | 582 | 7.1 | 7.1 | 12.1 | 33.4 |
| 600 | 610 | 630 | 780 | 725 | 30 | 20 | M27 | 42 | 622 | 642 | 6 | 6 | 80 | 682 | 7.1 | 7.1 | 15.5 | 46.1 |
Related Products
-
×

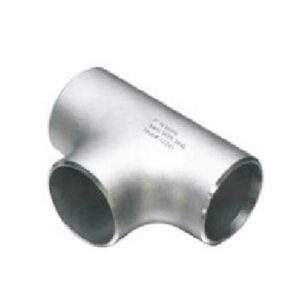

Tee Pipe
