Copper Globe Valve
- The stop valve is made of copper and uses red stamping hot forging technology. The stop valve below DN25 uses two seals.
- During the opening and closing process of the stop valve, the friction between the valve disc and the sealing surface of the valve body is smaller than that of the gate valve, so it is wear-resistant.
- The opening height is generally only 1/4 of the diameter of the valve seat channel, and there is usually only one sealing surface, with good manufacturing technology and easy maintenance.
Main appearance and connection dimensions
| DN | Size | L | B | H | D | |||
| 8 | 1/4 | 40 | 10.5 | 58 | 45 | |||
| 10 | 3/8 | 40 | 10.5 | 58 | 45 | |||
| 15 | 1/2 | 46 | 12 | 60 | 60 | |||
| 20 | 3/4 | 54 | 16 | 67.5 | 60 | |||
| 25 | 1 | 67 | 20 | 75 | 70 | |||
| 32 | 1 1/4 | 77 | 27 | 89.5 | 80 | |||
| 40 | 1 1/2 | 83 | 34 | 100 | 80 | |||
| 50 | 2 | 104 | 43 | 118 | 105 | |||
| 65 | 2 1/2 | 170.5 | 65 | 197 | 179 | |||
| 80 | 3 | 245 | 80 | 277 | 199.5 | |||
| 100 | 4 | 270.5 | 100 | 316 | 218 | |||
-
×

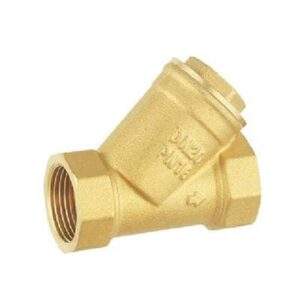

Brass Filter
Product Description
GL11H-16T brass thread filter is widely used in pipeline engineering systems to filter impurities in the medium so that the flowing medium meets the working requirements. The working temperature is below 120℃ and the nominal pressure is 1.6MPa.
Features
- The filter screen is made of stainless steel.
- The valve cover is sealed with polytetrafluoroethylene, and the filter screen is easy to disassemble and clean.
Extra Features- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
Open full product page00In stock -
×
Copper Gate Valve
Product Overview
Z15W-16T brass threaded gate valve is a control component in the pipeline system that drives the gate plate to move vertically along the channel axis to cut off the connected medium through the handwheel rotation. The flow cannot be adjusted when fully open or fully closed. It has the advantages of small fluid resistance and unrestricted medium flow direction. Brass gate valves are all metal sealing valves and are currently widely used in water supply systems.
Features
- The valve has low fluid resistance.
- The external force required for opening and closing is small.
- The flow direction of the medium is not restricted.
- When fully open, the erosion of the working medium on the sealing surface is smaller than that of the stop valve.
Extra Features- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
Open full product page00In stock -
×
Copper Ball Valve
Product Overview
Q11F-16T brass threaded ball valve is mainly used to cut off, distribute and change the flow direction of the medium on the pipeline. Its opening and closing part is a sphere, which is used to rotate 900 degrees around the axis of the valve stem to achieve the purpose of opening and closing.
Features
- Suitable for frequent operation, quick and easy opening and closing.
- Small fluid resistance.
- Simple structure, relatively small size, light weight, easy to maintain.
- Good sealing performance.
- Not restricted by the installation direction, the flow direction of the medium can be arbitrary.
Extra Features- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
Open full product page00In stock
