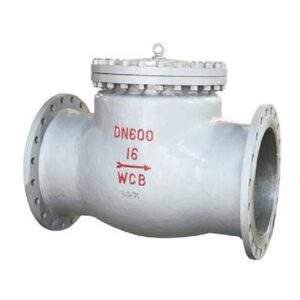

Swing Check Valve

Factory direct price, MOQ starting from 1 piece, free sample available.
One-stop valve service provider.

Over 20 years of experience.

Product Categories

Send Your Inquiry Today

Swing Check Valve
Swing Check Valve

Swing Check Valve

In stock
No MOQ, Free Samples
Custom-made, OEM/ODM Available.
Committed to a 2-hour Quote Response
One-stop Valve Service Provider

Main shape and connection dimensions

Model Nominal Diameter
DN		 PN1.6/2.5MPa About weight（kg）
L D D₁ D2₂ b Z-φd H
H44-16C

H44Y-16C

H44Y-16P

H44Y-16R

H44Y-161

 50 230 160 125 100 16 4-Φ18 135 21
65 290 180 145 120 18 4-φ18 142 28
80 310 195 160 135 20 8-φ18 165 38
100 350 215 180 155 20 8-φ18 180 58
125 400 245 210 185 22 8-φ18 210 92
150 480 280 240 210 24 8-φ23 233 130
200 500 335 295 265 26 12-φ23 304 210
250 550 405 355 320 30 16-Φ25 348 294
300 650 460 410 375 30 16-Φ25 390 367
350 750 520 470 435 34 16-φ25 430 410
400 850 580 525 485 36 16-φ30 468 461
450 950 640 585 545 40 20-φ30 523 570
500 1025 705 650 608 44 20-φ34 525 850
H44-25C

H44Y-25C

AAY-25F

H44Y-25R

H44Y-25I

 50 230 160 125 100 20 4-φ18 160 22
65 290 180 145 120 22 8-φ18 175 29
80 310 195 160 135 22 8-Φ18 185 38
100 350 230 190 160 24 8-φ23 220 61
125 400 270 220 188 28 8-φ25 248 96
150 480 300 250 218 30 8-φ25 276 32
200 550 360 310 278 34 12-φ25 350 213
250 650 425 370 332 36 12-φ30 410 297
300 750 485 430 390 40 16-φ30 430 372
350 850 550 490 448 44 16-φ34 518 415
400 950 610 550 505 48 16-φ34 560 480
450 1025 660 600 555 50 20-φ34 582 610
500 1150 730 660 610 52 20-φ41 618 920
