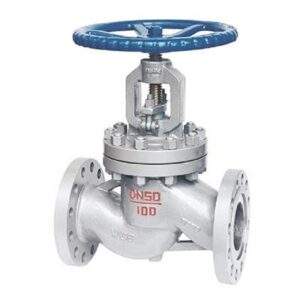

GB Globe Valve

Type	DN	PN4.0MPa									Approximately weight(kg)
		L	D	D1	D2	D6	b	Z-φd	H	Do	J41	J941
J41H-40 J41Y-40 J41B-40 J41W-40 J41Y-40 J41Y-40 J41Y-40 J941H-40 J941Y-40 J941B-40 J941W-40 J941Y-40 J941W-40 J941Y-40	15	130	95	65	45	40	16	4-Φ14	233	120	4.5	5.52
	20	150	105	75	55	51	16	4-φ14	275	140	5	7.1
	25	160	115	85	65	58	16	4-Φ14	285	160	7	8.7
	32	180	135	100	78	66	18	4-φ18	302	180	9	11.8
	40	200	145	110	85	76	18	4-φ18	355	200	12	16.5
	50	230	160	125	100	88	20	4-Φ18	373	240	24	24
	65	290	180	145	120	110	22	8-φ18	408	280	33	33
	80	310	195	160	135	121	22	8-φ18	436	320	44	44
	100	350	230	190	160	150	24	8-φ23	480	360	60	60
	125	400	270	220	188	176	28	8-φ25	558	400	89	93
	150	480	300	250	218	204	30	8-φ25	611	400	98	102
	200	600	375	320	282	260	38	12-φ30	720	400	170	175

Main shape and connection dimension1

Type	DN	PN6.4MPa									Approximately weight(kg)
		L	D	D1	D2	D6	b	Z-φd	H	Do
J41H-64 J41Y-64J41Y-64P J41Y-64R J41Y-641J941H-64 J941Y-64 J941B-64J941Y-64P J941Y-64R J941Y-641	15	170	105	75	55	41	18	4-Φ14	195	140	5.5
	20	190	125	90	68	51	20	4-φ18	228	160	7.5
	25	210	135	100	78	58	22	4-Φ18	275	180	9.1
	32	230	150	110	82	66	24	4-φ23	325	200	12
	40	260	165	125	95	76	24	4-φ23	360	240	18
	50	300	175	135	105	88	26	8-φ23	410	280	26
	65	340	200	160	130	110	28	8-φ23	450	320	36
	80	380	210	170	140	121	30	8-φ23	485	360	48
	100	430	250	200	168	150	32	8-φ25	537	400	68
	125	500	295	240	202	176	36	8-φ30	631	400	96
	150	550	340	280	240	204	38	8-φ34	646	450	107
	200	650	405	345	300	260	44	12-φ34	813	500	182
