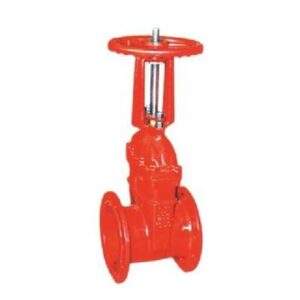

Fire Gate Valve

Product Overview Signal gate valves and signal butterfly valves are often used in automatic sprinkler fire protection pipeline systems to monitor the water supply pipeline and can remotely indicate the valve opening. Rising stem gate valves and gate valves with opening indication are also often used in fire protection systems. If the gate valve is installed at a higher position from the ground, a rising stem gate valve is generally used, which can clearly indicate the gate opening. If the installation position is lower, a gate valve with opening indication is required.
In stock
No MOQ, Free Samples
Custom-made, OEM/ODM Available.
Committed to a 2-hour Quote Response
One-stop Valve Service Provider

Material Description

Part name Transmission cap dust cover O-ring Valve cover valve body handwheel Shaft cover Thrust bearing Bolt Valve stem Copper nut Valve disc
Material Science GG25 NBR NBR GG25 GG25 GG25 GG25 BRONZE SUS410 SUS410 Bronze DM
NBF

Technical Parameters

Nominal diameter DN(mm) Nominal pressure PN(MPa) working temperature Sealing pressure Valve body pressure resistance Applicable media
DN50-400mm 1.0/1.6/2.5MPa 0-80℃ 1.1 times nominal pressure 1.5 times nominal pressure Water, oil, and gas

Main dimensions

Product model Nominal diameter DN(mm) D1 D2 n-φd L H
1.0MPa 1.6MPa 1.0MPa 1.6MPa   1.0MPa 1.6MPa
 GVS(F-)0050 50 135 125 4/19 178 340
GVS(F)-0065 65 185 145 4-19 190 370
GVS(F)-0080 80 200 160 8/19 203 410
 GVS(F)-00100 100 220 180 8/19 229 450
GVS(F)-00125 125 250 210 8/19 254 180
 GVS(F)-00150 150 285 240 8/23 267 550
GVS(F)-00200 200 340 295 8/23 12/23 292 630
 GVSF)-00250 250 405 350 355 12-23 12/28 330 750
GVS S(F)-00300 300 460 400 410  12/23 12/28 356 820
 GVS(F)-00350 350 520 460 470 16-23 16-28 381 980
GVS(F)-00400 400 580 515 525   16-28 16-31 406 1010
