Elbow Pipe
Elbow Pipe

Elbow Pipe

In stock
No MOQ, Free Samples
Custom-made, OEM/ODM Available.
Committed to a 2-hour Quote Response
One-stop Valve Service Provider

Parameters

Nominal diameter outside diameter Center to End Center to Center Back to end
45°Elbow 90°  Elbow 180° Elbow 180°Elbow
H F P K
DN nch A series B series Long radius Long radius B series Long radius B series Long radius Short radius
15 1/2 21.3 18 16 38 — 76 — 48 —
20 3/4 26.9 25 16 38 — 76 — 51 —
25 1 33.7 32 16 38 25 76 51 56 41
32 1 1/4 42.4 38 20 48 32 95 64 70 52
40 1 1/2 48.3 45 24 57 38 114 76 83 62
50 2 60.3 57 32 76 51 152 102 106 81
65 2 1/2 76.1(73) 76 40 95 64 191 127 132 100
80 3 88.9 89 47 114 76 229 152 156 121
90 3 1/2 101.6 — 55 133 39 267 178 184 140
100 4 114.3 108 63 152 102 305 203 210 159
125 5 139.7 133 79 190 127 381 254 262 197
150 6 168.3 159 95 229 152 457 305 313 237
200 8 219.1 219 126 305 203 610 406 414 313
250 10 273 273 158 381 254 762 508 518 391
300 12 323.9 325 189 457 305 914 610 619 467
350 14 355.6 377 221 533 356 1067 711 711 533
400 16 406.4 426 253 610 406 1219 813 813 610
450 18 457.2 478 284 686 457 1372 914 914 686
500 20 508 529 316 762 508 1524 1016 1016 762
550 22 559 — 347 838 559 Note: 1) Avoid using the values ​​in brackets as much as possible

2) Series A is preferred
600 24 610 630 379 914 610
650 26 660 — 410 991 660
700 28 711 720 442 1067 711
750 30 762 — 473 1143 762
800 32 813 820 505 1219 813
850 34 864 — 537 1295 864
900 36 914 920 568 1372 914
950 38 965 — 600 1448 965
1000 40 1016 1020 631 1524 1016
1050 42 1067 — 663 1600 1067
1100 44 1118 1120 694 1676 1118
1150 46 1168 — 726 1753 1168
1200 48 1220 1220 758 1829 1219
Related Products
  • Tee Pipe
    ×
    Tee Pipe
    Tee Pipe

    Tee Pipe

    Extra Features
    • Premium Quality
    • Secure Payments
    • Satisfaction Guarantee
    • Worldwide Shipping
    • Money Back Guarantee
    Open full product page
    0
    0

    Tee Pipe

    In stock
  • PN0.6 MPa Flange
    ×
    PN0.6 MPa Flange
    PN0.6 MPa Flange

    PN0.6 MPa Flange

    Extra Features
    • Premium Quality
    • Secure Payments
    • Satisfaction Guarantee
    • Worldwide Shipping
    • Money Back Guarantee
    Open full product page
    0
    0

    PN0.6 MPa Flange

    In stock

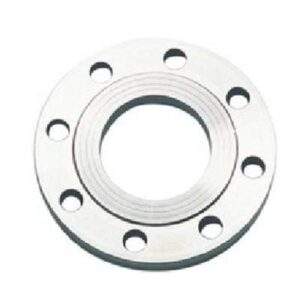

  • Flange PN 0.6MPa
    ×
