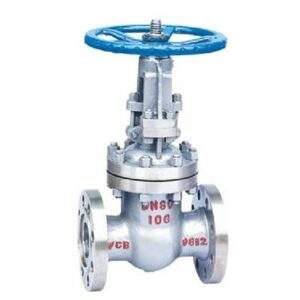

Cryogenic Gate Valve
Cryogenic Gate Valve

Cryogenic Gate Valve

In stock
No MOQ, Free Samples
Custom-made, OEM/ODM Available.
Committed to a 2-hour Quote Response
One-stop Valve Service Provider

Main appearance and connection dimensions

Type
DN 		PN1.6MPa (kg)
L D D1 D2 b Z-φd H Do
PZ40Y-16L 20 150 105 75 55 14 4-Φ14 320 140 6
25 160 115 85 65 14 4-Φ14 350 160 7
32 180 135 100 78 16 4-φ18 385 180 9
40 200 145 110 85 16 4-φ18 420 200 15
50 250 160 125 100 16 4-φ18 540 240 30
65 265 180 145 120 18 4-Φ18 610 240 34
80 280 195 160 135 20 8-φ18 690 280 45
100 300 215 180 155 20 8-Φ18 780 300 64
125 325 245 210 185 22 8-φ18 930 320 110
150 350 280 240 210 24 8-φ23 980 360 135
200 400 335 295 265 26 12-φ23 1180 400 195
250 450 405 355 320 30 12-φ25 1390 450 275
300 500 460 410 375 30 12-φ25 1620 560 380
350 550 520 470 425 34 16-φ25 1810 640 594
400 600 580 525 485 36 16-φ30 1970 640 725

Main appearance and connection dimensions2

Type DN PN2.5MPa (kg)
L D D1 D2 b Z-φd H Do
PZ40Y-25L 20 150 105 75 55 16 4-Φ14 320 140 6
25 160 115 85 65 16 4-φ14 350 160 8
32 180 135 100 78 18 4-φ18 385 180 10
40 200 145 110 85 18 4-φ18 420 200 16
50 250 160 125 100 20 4-φ18 540 240 30
65 265 180 145 120 22 8-φ18 610 240 35
80 280 195 160 135 22 8-Φ18 690 280 47
100 300 230 190 160 24 8-φ23 780 300 65
125 325 270 220 188 28 8-φ25 930 320 110
150 350 300 250 218 30 8-φ25 980 360 135
200 400 360 310 278 34 12-φ25 1180 400 215
250 450 425 370 332 36 12-φ30 1390 450 295
300 500 485 430 390 40 16-φ30 1620 560 400
350 550 550 490 448 44 16-φ34 1810 640 630
400 600 610 550 505 48 16-φ34 1990 640 910
