200X Reducing Valve
200X Reducing Valve

200X Reducing Valve

Structure and use This valve is a type of valve that uses the energy of the medium itself to regulate the pressure of the pipeline. By adjusting the pressure reducing pilot valve, the outlet pressure of the main valve is controlled. The outlet pressure does not change due to changes in the inlet pressure or changes in the outlet water consumption. Reliable sealing performance, easy installation, maintenance, debugging, and inspection, and long service life.
In stock
No MOQ, Free Samples
Custom-made, OEM/ODM Available.
Committed to a 2-hour Quote Response
One-stop Valve Service Provider

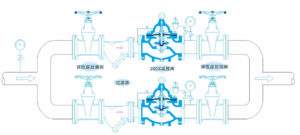

Installation diagram

Main appearance and connection dimensions

Nominal diameter
DN(mm)		 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 450 500 600
L 180 180 180 203 203 215 241 292 330 356 450 500 560 630 700 780 850 980
PN10 D 105 115 135 145 160 180 195 215 245 280 335 390 440 500 565 615 670 780
D1 75 85 100 110 125 145 160 180 210 240 295 350 400 460 515 565 620 725
PN16 D 105 115 135 145 160 180 195 215 245 280 335 405 460 520 580 640 705 840
D1 75 85 100 110 125 145 160 180 210 240 295 355 410 470 525 585 650 770
PN25 D 105 110 135 145 160 180 195 230 270 300 360 425 485 550 610 660 730 840
D1 75 85 100 110 125 145 160 190 220 250 310 370 430 490 550 600 660 770
H 342 342 342 395 395 405 430 510 560 585 675 730 760 840 910 1030 1135 1270
H₁ 247 247 247 278 278 298 313 350 365 420 450 470 490 536 570 610 665 725
Related Products
  • 200X Reducing Valve
    ×
    200X Reducing Valve
    200X Reducing Valve

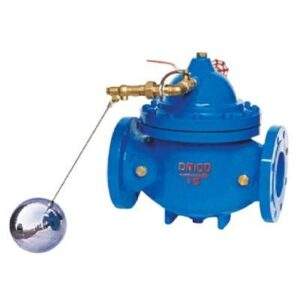

    100X Ball Valve
